GTP Series False Car
![](images/pplogo.png)
![](./img/large.png)
CE certificated!
Safely Reduce Shaft Installation Time!

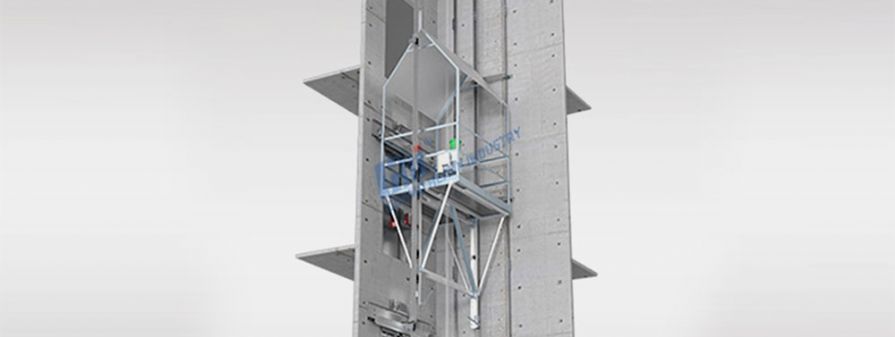

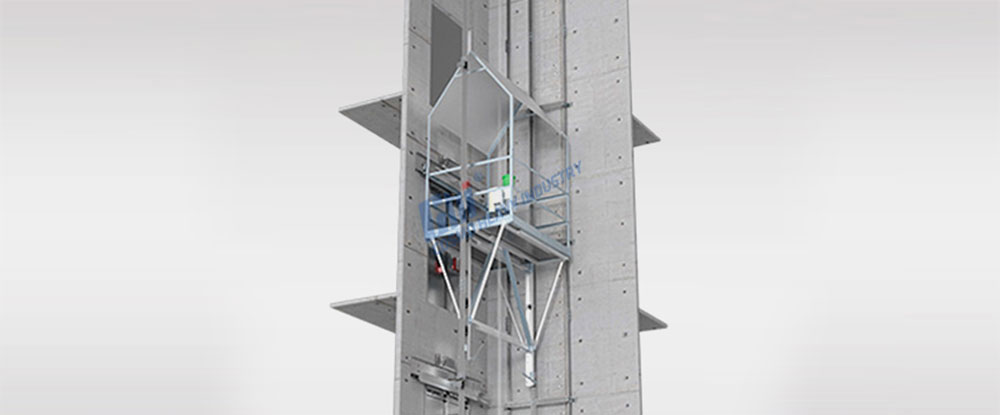

The False Car used in combination with a Wire Rope Winches will reduce the time needed to install elevator shaft equipment. It is adjustable to a wide range of DBG (distance between guides) and depth dimension. It is a much safer and a more economical solution!
Benefits
• Early Entrance On To Jobsite
False Car allows contractor to begin installing hoist-way equipment prior to building and machine room completion
• Quick Setup
False Car is installed once in approximately 2 hours regardless of building height. Scaffold must be installed throughout hoist-way.
• Faster/More Efficient Rail Installation
Moving platform that is not dependent on building height allows for much quicker installation than scaffold or planking method
• Cost
Initial investment allows for reduced installation costs on all future job sites
• Full Adjustability
CHI system allows for adjustability to hoist-ways of all sizes
• Increased Safety: Reduces Your Liability
Safety devices and capacity-rated equipment as part of false car system increases jobsite safety
Technical Specifications:
• Rated Capacity :
400~600kg by different models of CHI winches.
• Standard Size Ranges:
DBG: 1350mm~2000mm; 1650mm~3000; 2150mm~4000mm adjustable
Depth: 1500mm~2000mm adjustable
• Safety Measures:

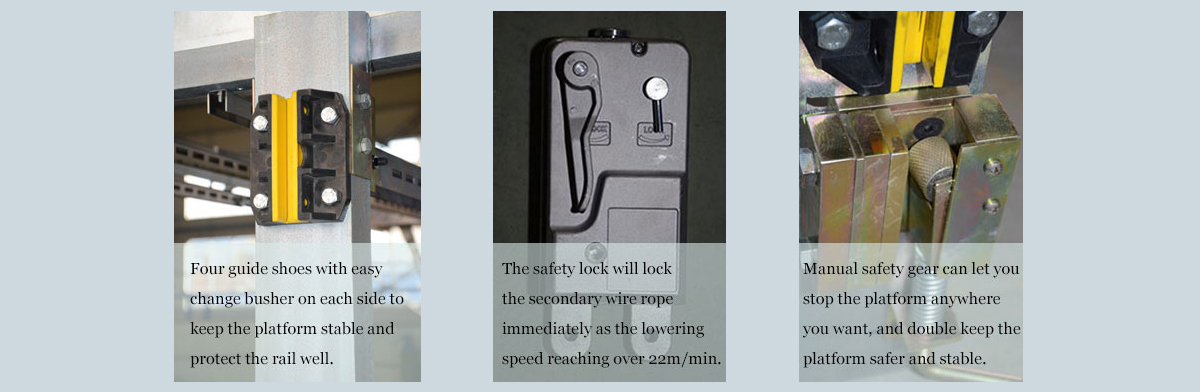

Wire Rope Safety Lock, Guide Safety Gear etc.
• Customize available
• Rated Capacity :
400~600kg by different models of CHI winches.
• Standard Size Ranges:
DBG: 1350mm~2000mm; 1650mm~3000; 2150mm~4000mm adjustable
Depth: 1500mm~2000mm adjustable
• Safety Measures:
Wire Rope Safety Lock, Guide Safety Gear etc.
• Customize available
Key Features
![](./uploadfiles/20210605/20210605134053644.jpg)

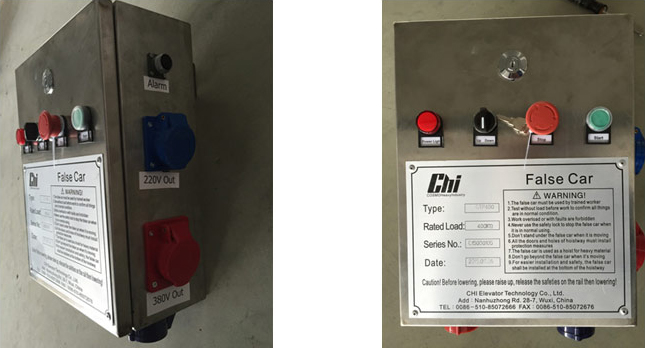

Digit control box is set according to safety requirements from large elevator companies. We also make settings to avoid false control. 220V, 380V power out for necessary tools.
![](./uploadfiles/20210605/20210605134105896.jpg)
![](./uploadfiles/20210605/20210605134105896.jpg)

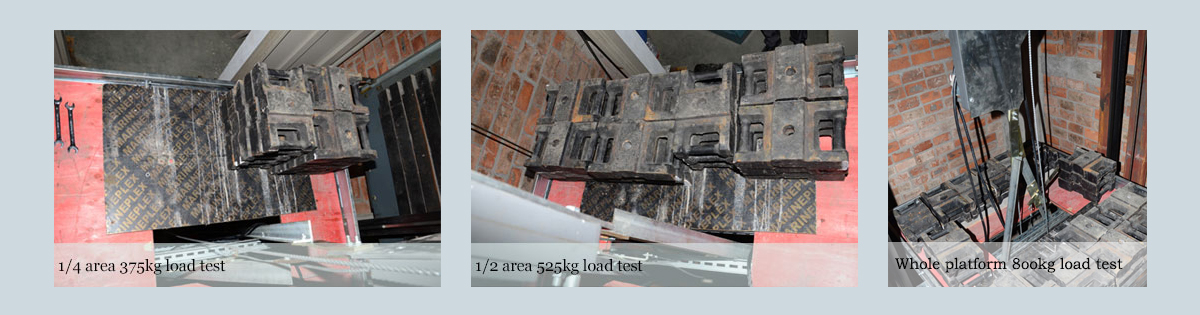

Strict tests
![](./uploadfiles/20210605/20210605134131477.jpg)
