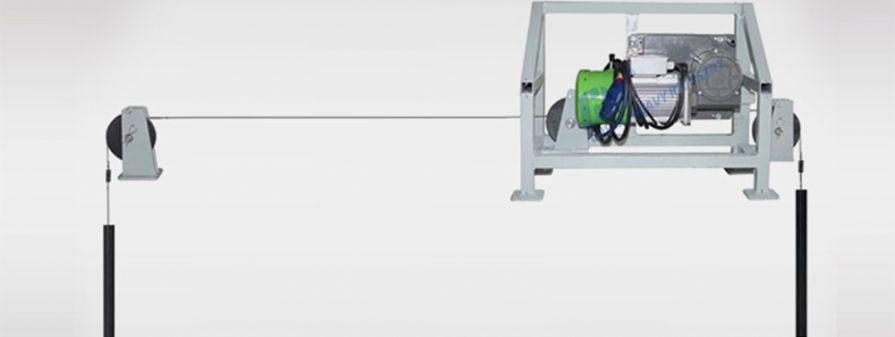

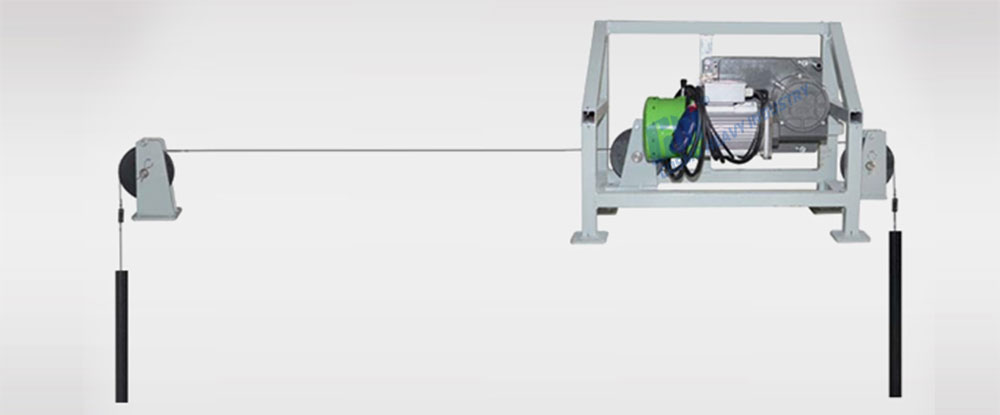

• Efficient
It will lift the rails with double ends, one end up while the other end comes down for another new rail.
• Quick Setup
Only require two drilling holes in machine room for the two lifting ends. The frame will only need 4 expansion screw to position.

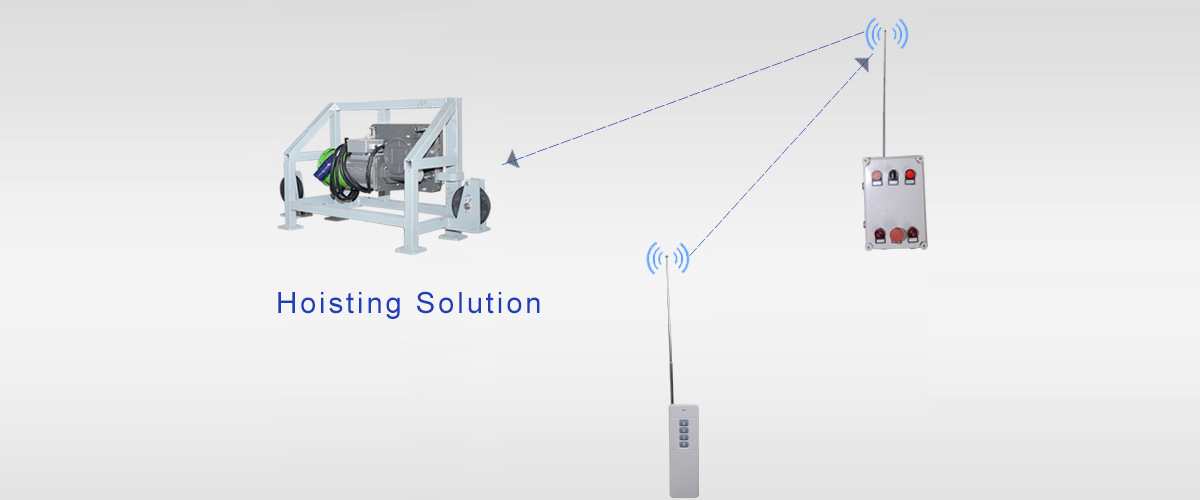

• Remote control
It provides remote which can be used for 1000m. Then the worker can control the lifting system directly in the false car.
• Save Cost
It will help save one person in the machine room who control the winches before. And double ends lifting will help save more time from lifting.
• Full Adjustability
The lifting system designed adjustable to any kind of elevator shaft.
• Increased Safety: Reduces Your Liability
Safety devices and emergency stop button as part of the lifting system increases job-site safety

Main parameters:
Lifting System
Rated Capacity: 200kg
Power Supply: 380V, 50Hz, 3 phase
Motor Power: 1.5kw
Lifting Speed: 18m/min
Remote Distance: 1000m
Wire Rope: 6mm dia. (Anti-spinning)
Safety Device: Emergency Stop, Top-Limit Switch
